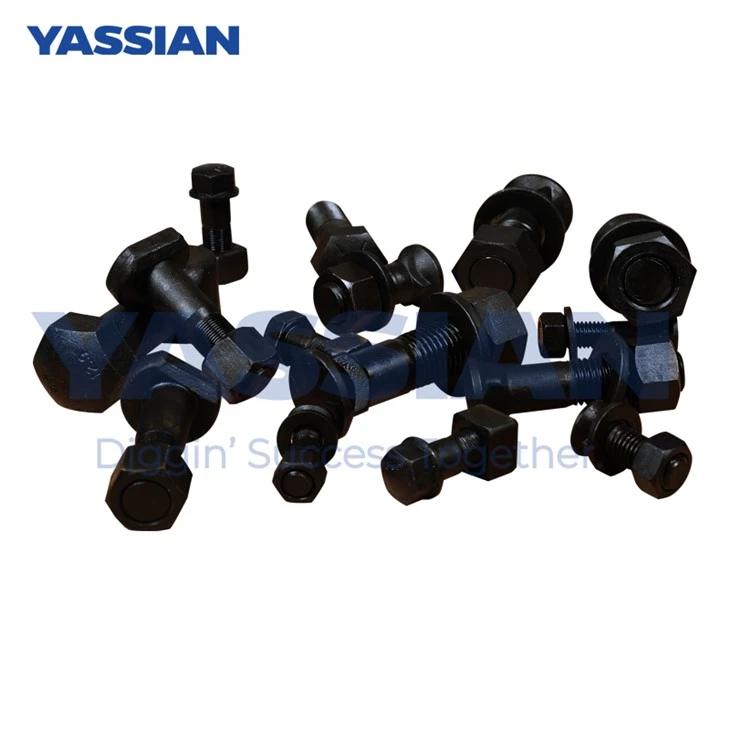

Track Shoe Bolts and Nuts
Material: 40Cr
Diameter: 1/2”～1-3/8” , M10-M30
Customer drawing is acceptable
Basic information
Name: Track Shoe Bolts and Nuts
Material: 40Cr
Diameter: 1/2"～1-3/8" , M10-M30
Customer drawing is acceptable
Grade: 10.9 or 12.9 track bolts, 8.8 track nuts
|
|
Tensile Strength |
Hardness |
|
Grade 8.8 |
120,000 P.S.I (85.0 Kg/mm2) |
HRC26~32 |
|
Grade 10.9 |
150,000 P.S.I (105.0 Kg/mm2) |
HRC32~38 |
|
Grade 12.9 |
170,000 P.S.I (120.0 Kg/mm2) |
HRC38~42 |
Hardness: Heat treatment is carried out to ensure the right hardness HRC 36-42
Surface: Black, galvanization or as per customer request
Please send us the track shoe part no., we will find the right track shoe bolt and nuts for you.
Packaging Details: Carton box in plywood case
Place of Origin: Ningbo, China
Certification: ISO9001:2015 certified factory
Track shoe bolts and nuts
|
CAT Part No. |
KOM Part No. |
Specification |
|
2B5484 |
|
7/16"-20UNF(2A)X41 |
|
|
|
7/16"-20UNF(2A)X44.5 |
|
|
|
7/16"-20UNF(2A)X50.8 |
|
|
|
7/16"-20UNF(2A)X63.50 |
|
8H7504 |
|
1/2"-20UNF(2A)X38 |
|
|
|
1/2"-20UNF(2A)X38H |
|
|
|
1/2"-20UNF(2A)X43 |
|
|
70097287 |
1/2"-20UNF(2A)X43H |
|
2A3223 |
|
1/2"-20UNF(2A)X47 |
|
|
|
1/2"-20UNF(2A)X49 |
|
|
|
1/2"-20UNF(2A)X54 |
|
|
|
1/2"-20UNF(2A)X57 |
|
|
|
1/2"-20UNF(2A)X82 |
|
|
|
9/16"-18UNF(2A)X38.1 |
|
4K7038 |
|
9/16"-18UNF(2A)X42 |
|
|
|
9/16"-18UNF(2A)X44.5 |
|
|
|
9/16"-18UNF(2A)X46 |
|
|
|
9/16"-18UNF(2A)X50 |
|
7H3596 |
|
9/16"-18UNF(2A)X51 |
|
|
|
9/16"-18UNF(2A)X52.4 |
|
|
|
9/16"-18UNF(2A)X55.5 |
|
|
|
9/16"-18UNF(2A)X57.15 |
|
5P4684 |
|
9/16"-18UNF(2A)X73 |
|
5A3187 |
|
9/16"-18UNF(2A)X76.2 |
|
|
|
9/16"-18UNF(2A)X82.5 |
|
|
|
9/16"-18UNF(2A)X85 |
|
8U2703 |
|
5/8"-18UNF(2A)X46 |
|
7H3597S |
|
5/8"-18UNF(2A)X51 |
|
7H3597L |
|
5/8"-18UNF(2A)X54 |
|
5H8756 |
|
5/8"-18UNF(2A)X57 |
|
9G3110 |
|
5/8"-18UNF(2A)X57 |
|
|
|
5/8"-18UNF(2A)X60 |
|
|
|
5/8"-18UNF(2A)X64 |
|
3T8601 |
|
5/8"-18UNF(2A)X67 |
|
|
|
5/8"-18UNF(2A)X70 |
|
|
|
5/8"-18UNF(2A)X76.2 |
|
|
|
5/8"-18UNF(2A)X82.5 |
|
9G8592 |
|
5/8"-18UNF(2A)X82.55 |
|
3P2274 |
|
5/8"-18UNF(2A)X88.9 |
|
3T8580 |
|
5/8"-18UNF(2A)X90.5 |
|
|
|
5/8"-18UNF(2A)X92 |
|
|
|
5/8"-18UNF(2A)X101.6 |
|
|
|
3/4"-16UNF(2A)X56(46 Thread) |
|
1S1859 |
|
3/4"-16UNF(2A)X56(29 Thread) |
|
|
|
3/4"-16UNF(2A)X60.4 |
|
6V1792 |
|
3/4"-16UNF(2A)X61 |
|
7H3598 |
|
3/4"-16UNF(2A)X63 |
|
|
|
3/4"-16UNF(2A)X63.5 |
|
7F8619 |
|
3/4"-16UNF(2A)X70 |
|
|
|
3/4"-16UNF(2A)X75 |
|
6V1793 |
|
3/4"-16UNF(2A)X81 |
|
|
|
3/4"-16UNF(2A)X89 |
|
|
1070719 |
3/4"-16UNF(2A)X99 |
|
5A7524 |
|
3/4"-16UNF(2A)X101.6 |
|
9S1838 |
|
3/4"-16UNF(2A)X105 |
|
2P9670 |
|
3/4"-16UNF(2A)X112 |
|
7H3599 |
|
7/8"-14UNF(2A)X67 |
|
|
|
7/8"-14UNF(2A)X69 |
|
|
|
7/8"-14UNF(2A)X75 |
|
|
|
7/8"-14UNF(2A)X75 |
|
|
|
7/8"-14UNF(2A)X80 |
|
6V1723 |
|
7/8"-14UNF(2A)X88.9 |
|
6V1724 |
|
7/8"-14UNF(2A)X95.25 |
|
9W9058 |
|
7/8"-14UNF(2A)X115 |
|
8S0395 |
|
7/8"-14UNF(2A)X121.4 |
|
6V1725 |
|
7/8"-14UNF(2A)X127 |
|
6T1140 |
|
7/8"-9UNC(2A)X86.5 |
|
2M5657 |
|
1"-14UNF(2A)X75.30 |
|
|
|
1"-14UNF(2A)X78 |
|
3T6308 |
|
1"-14UNF(2A)X84 |
|
6T2638 |
|
1"-14UNF(2A)X90 |
|
6T1139 |
|
1"-8UNC(2A)X97 |
|
6V1726 |
|
1"-14UNF(2A)X100 |
|
6V1727 |
|
1"-14UNF(2A)X110 |
|
7T2283 |
|
1"-14UNF(2A)X123.1 |
